Model |
Voltage VAC
|
Freq. Hz
|
Current A
|
Power W
|
Speed rpm
|
Pressure mmAq
|
Air Flow CFM
|
Noise dB
|
|
|
High Speed |
|
|
|
|
|
|
|
|
|
|
A11025-V1HBLP |
115 |
50 / 60 |
0.17 / 0.14 |
16.0 / 14.0 |
2200 / 2400 |
3.6 / 4.0 |
60 / 71 |
36 / 38 |
|
|
A11025-V2HBLP |
220 |
50 / 60 |
0.09 / 0.08 |
16.0 / 14.0 |
2200 / 2400 |
3.6 / 4.0 |
60 / 71 |
36 / 38 |
|
|
A11025-V1HSLP |
115 |
50 / 60 |
0.17 / 0.14 |
16.0 / 14.0 |
2200 / 2400 |
3.6 / 4.0 |
60 / 71 |
36 / 38 |
|
|
A11025-V2HSLP |
220 |
50 / 60 |
0.09 / 0.08 |
16.0 / 14.0 |
2200 / 2400 |
3.6 / 4.0 |
60 / 71 |
36 / 38 |
|
多款风机有售，全新原装正品，欢迎点击►恒瑞宏晟

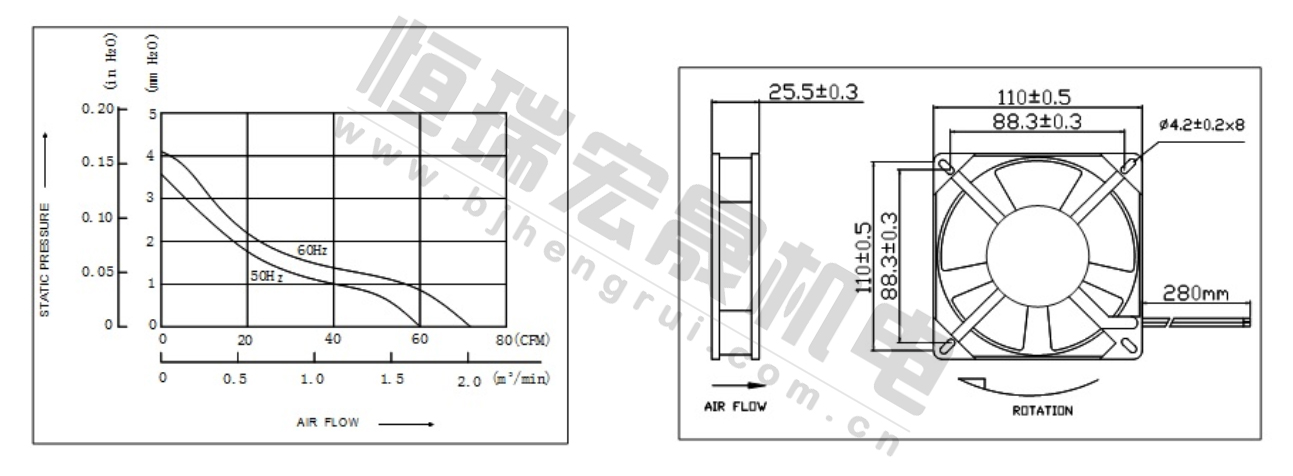

| SIZE | 110x110x25 |
| MATERIAL | Aluminum Housing, Plastic Impeller |
| BEARINGS | Maintenance-Free Ball Bearings |
| MOTOR TYPE | AC shaded-pole motor |
| CONNECTION | Lead wire |
| DIELECTRIC STRENGTH | 1800 VAC for 1 Sec. |
| INSULATION RESISTANCE | 100 MΩ min.@500VDC |
| OPERATING TEMPERATURE | -30℃ to +75℃ (Ball Bearing) |
| -10℃ to +70℃ (Sleeve Bearing) | |
| TYPE OF PROTECTION | Insulation Class B |
| SAFETY | Impedance Protected |
| WEIGHT | |
| ROHS COMPLIANCE | Yes |
多款风机有售，全新原装正品，欢迎点击►恒瑞宏晟
通风，散热，制冷。
